Do More With A THOR
Lots of happy THOR customer testimonials
NovoTHOR Whole Body Light Pod

Custom Systems

THOR has created packages that fulfill the needs of most practitioners. View our Most Popular Packages. However we appreciate that some customers will have specific needs that may be better served by a custom system which can be selected from the comprehensive range of fully interchangeable components below.

THOR offer a choice of 2 different drive units and 10 different treatment probes. All treatment probes are interchangeable with all drive units.

The treatment probes break down in to 5 categories:

  1. LED clusters for superficial treatments over large areas (e.g. wound healing)
  2. IR (infra-red) single laser probes for pain relief and deep musculoskeletal disorders (e.g. joint, tendon, bone)
  3. IR (infra-red) laser clusters for pain relief and deep musculoskeletal disorders over larger areas
  4. Red single laser probes for wound healing and dermatology
  5. Red laser clusters for wound healing and dermatology over larger areas

We are happy to offer expert advice on which laser package will best suits your needs.

Prices from US$16,000 to US$40,000 (£12,495–£31,995 + VAT)


LX2 Control Unit

LX2 Control Unit

Product Code: S1022

Mains Powered (Voltage 115v or 230v User Adjustable), Two Probe Outputs (Automatic Switching), Skin Conduction (Acupuncture/trigger Point Locator), Optical Power Meter, Timer 5 Seconds - 5 Minutes, 11 Pulse Frequencies from 2.5 Hz - 20k Hz & Continuous, Weight 3kg Dimensions 195 X 125 X 350mm

DDv Control Unit

DDv Portable Control Unit - For veterinary use only

Mains and 2.3 Ah Battery Powered (Voltage 115v Or 230v; Built-in Charger User-Adjustable), One Probe Output, 2 Preset Times, continuous wave or 2.5Hz pulse frequency, Weight 3.0kg Dimensions 150 X 200 X 300mm



THOR Medium LED Cluster

THOR Medium LED Cluster

Product Code: S2110
69 Diodes

34 x 660nm 10mW
35 x 850nm 30mW
1390mW Total
Probe Specifications
THOR Large LED Cluster

THOR Large LED Cluster

Product Code: S2140
104 Diodes

56 x 660nm 10mW
48 x 850nm 30mW
2000mW Total
Probe Specifications
THOR Lollipop LED Probe

THOR LED Lollipop

Product Code: S2197
2800mW total power
41 Diodes

18 × 660nm 80mW
23 × 850nm 60mW/cm2
THOR Laser Cluster

THOR Laser Cluster

Product Code: S2160
5 Diodes

5 x 810nm 200mW
1,000mW Total
Probe Specifications
THOR Giant Laser Cluster (GLC)

THOR Giant Laser Cluster (GLC)

Product Code: S2195
80 Diodes

80 x 810nm 200mW
16000mW Total
Product information page
THOR NIR Trigger Point Laser

THOR Trigger Point Laser

Product Code: S2092

1 x 810nm 200mW
200mW Total
Probe Specifications
THOR NIR Dental Laser

THOR NIR Dental Laser

Product Code: S2091

1 x 810nm 200mW
200mW Total
Probe Specifications
THOR Red Dental Laser

THOR Red Dental Laser

Product Code: S2173

1 x 660nm 75mW
75mW Total
Probe Specifications
Red Acupuncture Single Probe

THOR Red Acutip Laser

Product Code: S2040



Laser Safety Glasses

Our CE Marked Laser Safety Glasses work by absorbing the harmful laser energy and not by reflection. They are supplied in a protective storage pouch as standard.
[ordered seperately]

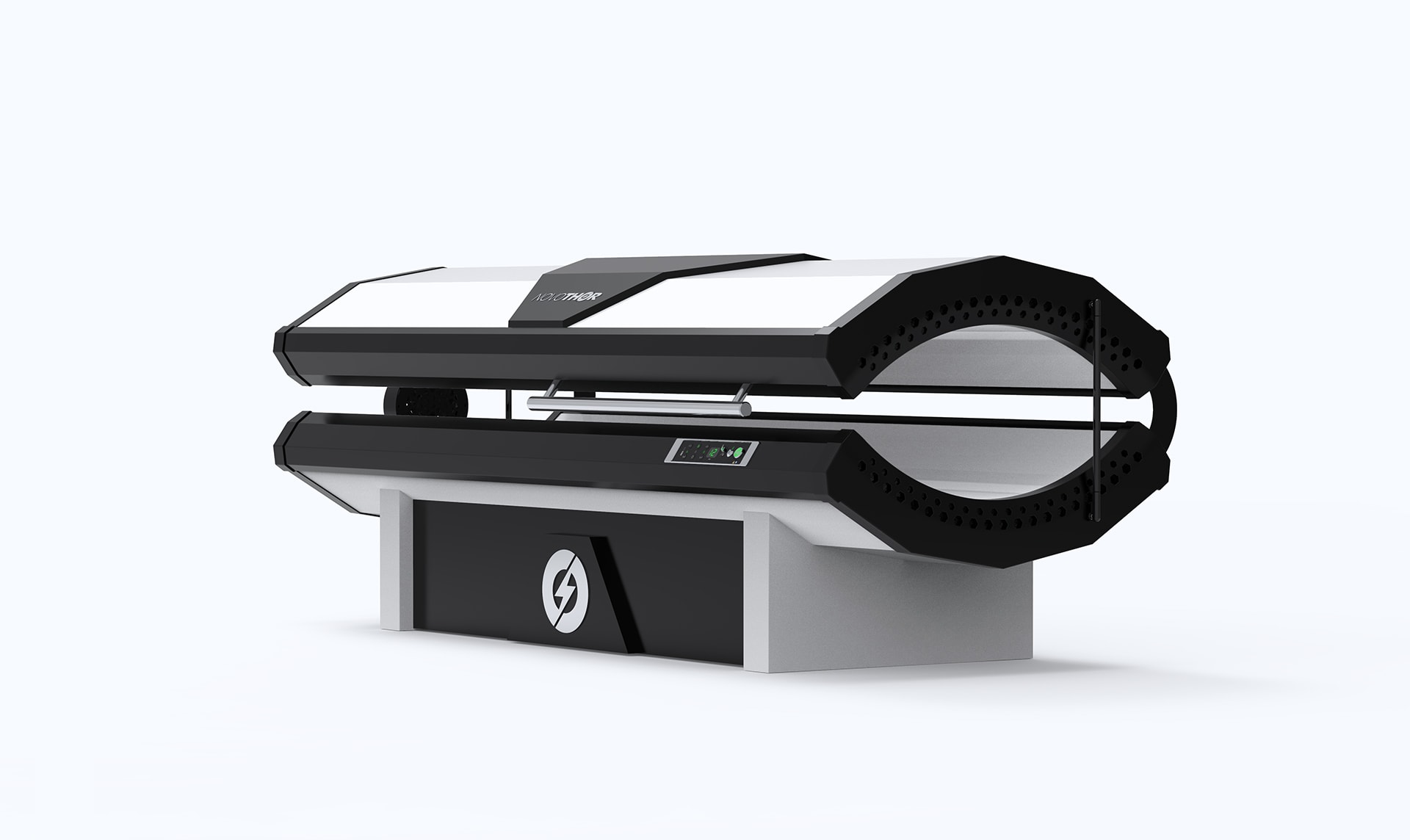

NovoTHOR ®

NovoTHOR® is a whole body red light therapy bed that uses red and near-infrared light to treat injuries, reduce pain, relax muscles/joints, and increase blood circulation.


Customer Testimonials

"I have been using lasers in my dental practice for more than 10 years now, and THOR is my latest addition. After completing the excellent remote training with James Carroll, I started using PMB on TMD cases, and the results have been immediate. The patients are very happy with the rapid remission of their symptoms. I am looking forward to using PMB in a variety of clinical situations in my office."

Dr. Elizabeth Munteanu D.D.S. Dr. Elizabeth Munteanu D.D.S.
Toronto ON, Canada

"We are having great results from our THOR equipment. The week before last I had a chap in who's had knee problems for ever and has only been able to ski half days since his last operation 4 years ago. I used THOR Giant Laser Cluster (GLC) on him (as well as some other stuff) before he went off skiing last week and he came in yesterday to tell me he was able to ski for full days all last week for the first time in about 4 years!!!… and asking for "a top up" before he heads back out on Saturday.

He was convinced it was due to the GLC – but I had encouraged him to use NovoTHOR a few times before he went out too so I presume it was a bit of both."

Philip Baines, Owner/Chiropractor Philip Baines
Active Care Chiropractic

"I have been using the THOR Laser for 25 years.. I found the course a very useful update on the clinical use. I have purchased a second machine for my practice."

Alfie Mannion, Medical Doctor Alfie Mannion
Medical Doctor
Donegal, Ireland

"I have had my THOR Laser for four months and so far have treated countless TMJ patients, three oral mucositis patients and a few xerostomia patients. All of them feel instant effects and rave about the results. This has been one of the most amazing pieces of technology I have introduced into my practice. I definitely recommend it for every dental office."

Dr. Jennifer Waters, DDS Dr. Jennifer Waters, DDS
Clear Creek Dental Clinic
Colorado, USA

"We love this unit so much we just ordered a second one to keep up with demand! I've waited a while to purchase a unit. I really love this one! Fabulous engineering. Super simple to use. Thanks!!!"

Richard Palmquist, DVM Richard Palmquist, DVM
Centinela Animal Hospital, Inc
Inglewood, CA, USA

Our customers include: Harvard Medical School, Massachusetts General Hospital, British Army, RAF, Royal Navy, Team GB, Manchester United, MIT, Harvard School of Public Health, Cedars Sinai, City of Hope, USUHS
THOR Customers

THOR Photomedicine Ltd is an ISO 13485:2016 certified medical device company.

The THOR LX2.3 Photobiomodulation system has a medical CE mark (EC certificate). It is indicated for oral mucositis, tendinopathies, joint pain, neck pain and back pain for marketing in the UK, EU and Australia.

The THOR LX2.3 Photobiomodulation system is also FDA Cleared for marketing in the United States for: Temporary increase in local blood circulation, temporary relief of minor muscle and joint aches, pains and stiffness and relaxation of muscles; for muscle spasms, and minor pain and stiffness associated with arthritis.

Excluding the THOR LED Helmet, THOR LX2 and NovoTHOR systems are manufactured under conditions fulfilling the quality system requirements of Annex II, excluding (4), of the directive 93/42/EEC as amended and satisfy the applicable international harmonised standards.

Positive systematic reviews published by:

The British Medical Journal (BMJ), The Lancet, the International Association for the Study of Pain (IASP), the World Health Organisation (WHO), the Multinational Association for Supportive Care in Cancer (MASCC), the European Society for Medical Oncology (ESMO)

Appropriate regulatory clearance or approvals include:

Quality certificates
